Two Stroke 2.5hp - 50hp

Starting reliability with gutsy performance

The secret to our mid-range is our renowned reliability thanks to its cool running. With high volume, low pressure, floppy-vane water impellers keeping operating conditions down.

2-5hp_twostroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 2.5 / 1.9
Displacement (CID/CC) 4.6 / 74.6
Cylinder Configuration 1
Full throttle RPM 4200 - 5200
Starting Manual
Steering Tiller with 360° turning
Shaft length 15" / 381 mm
Gearcase ratio 1.85 : 1
Dry weight *Lightest model available 13 kg
Emissions Star Rating 0
Bore and stroke 47 x 43
Trim system 4 position
Trim positions 4
Oil Injection Pre-mix

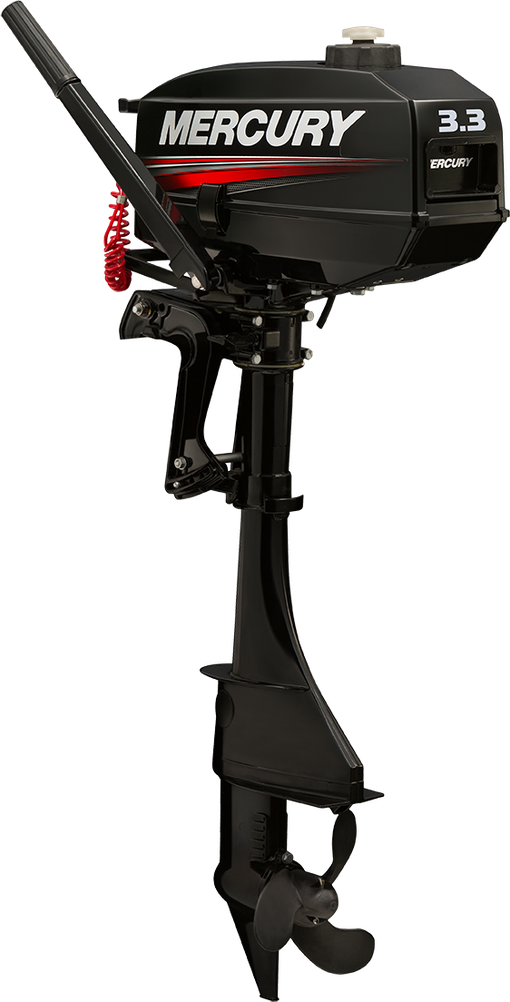

 3-3hp_twostroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png HP / kW 3.3 / 2.5
Displacement (CID/CC) 4.6 / 74.6
Cylinder Configuration 1
Full throttle RPM 4500 - 5500
Fuel induction system Loop-charged (1 carb)
Starting Manual
Steering Tiller with 360° turning
Shaft length 15" / 381 mm
Gearcase ratio 2.15 : 1
Dry weight *Lightest model available 13 kg
Emissions Star Rating 0
Bore and stroke 47 x 43
Trim system 4 position
Trim positions 4
Oil Injection Pre-mix
4hp_twostroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 4 / 3
Displacement (CID/CC) 6.2 / 102
Cylinder Configuration 1
Full throttle RPM 4500 - 5500
Fuel induction system Loop-charged (1 carb)
Starting Manual
Steering Tiller
Shaft length 15" / 381 mm
Gearcase ratio 2.15 : 1
Dry weight *Lightest model available 20 kg
Emissions Star Rating 1
Bore and stroke 55 x 43
Trim positions 6
Oil Injection Pre-mix

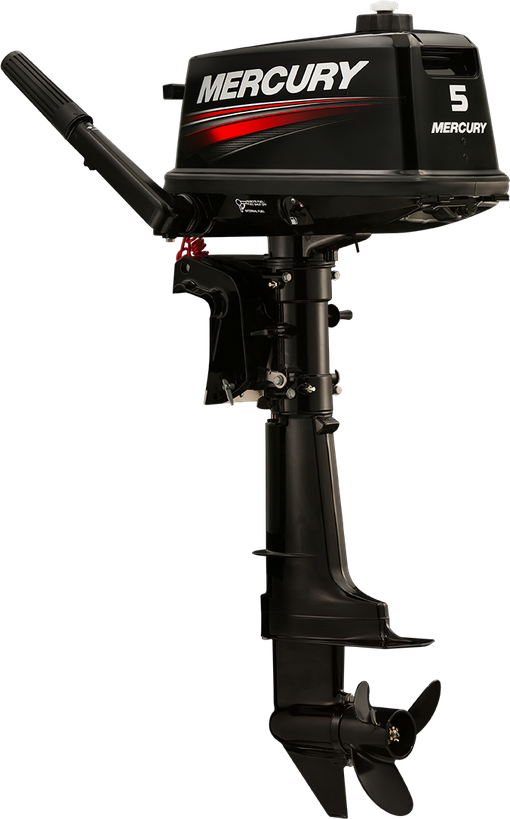

 5hp_twostroke_3qtr-port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png HP / kW 5 / 3.7
Displacement (CID/CC) 6.2 / 102
Cylinder Configuration 1
Full throttle RPM 4000 - 5000
Fuel induction system Loop-charged (1 carb)
Starting Manual
Steering Tiller
Shaft length 15" / 381 mm 20" / 508 mm
Gearcase ratio 2.15 : 1
Dry weight *Lightest model available 20 kg
Emissions Star Rating 1
Bore and stroke 55 x 43
Trim positions 6
Oil Injection Pre-mix
6hp_twostroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 6 / 4.5
Displacement (CID/CC) 10.3 / 169
Cylinder Configuration I-2
Full throttle RPM 4500 - 5500
Fuel induction system Loop-charged (1 carb)
Starting Manual
Steering Tiller
Shaft length 15" / 381 mm 20" / 508 mm
Gearcase ratio 2.08 : 1
Dry weight *Lightest model available 26 kg
Bore and stroke 50mm x 43mm
Trim positions 6
Oil Injection Pre-mix

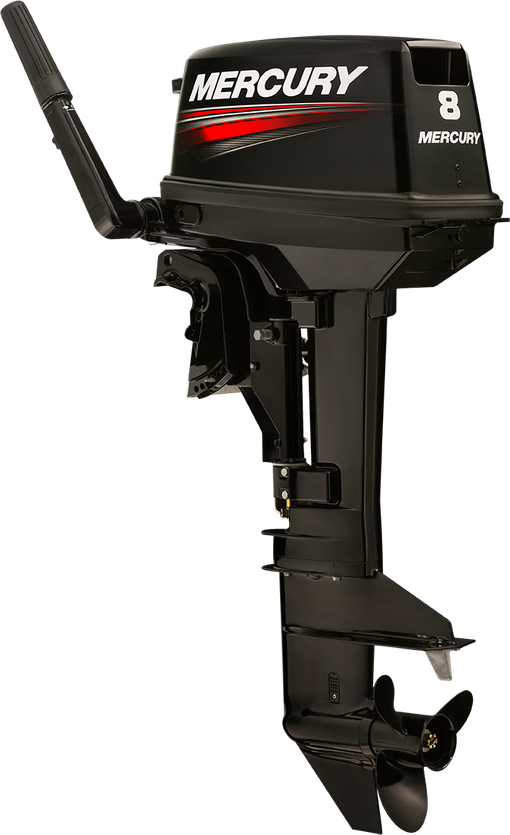

8hp_twostroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 8 / 6
Displacement (CID/CC) 10.3 / 169
Cylinder Configuration I-2
Full throttle RPM 4500 - 5500
Fuel induction system Loop-charged (1 carb)
Starting Manual
Steering Tiller
Shaft length 15" / 381 mm 20" / 508 mm
Gearcase ratio 2.08 : 1
Dry weight *Lightest model available 26 kg
Emissions Star Rating 0
Bore and stroke 50mm x 43mm
Trim positions 6
Oil Injection Pre-mix
99_2stroke_169cc_3-4_port_rear.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 9.9 / 7.4
Displacement (CID/CC) 15.1 / 247
Cylinder Configuration l-2
Full throttle RPM 4500 - 5300
Alternator amp / Watt 7 amp/80 watt
Starting Manual
Steering Tiller
Gearcase ratio 1.85 : 1
Dry weight *Lightest model available 41 kg
Trim positions 6
99_2stroke_169cc_3-4_port_rear.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 9.9 / 7.4
Displacement (CID/CC) 15.07 / 247
Cylinder Configuration I-2
Full throttle RPM 4500-5300
Fuel induction system Loop-charged (1 carb)
Recommended fuel Pre-Mix 50:1
Starting Manual
Steering Tiller
Shaft length 15" / 381 mm 20" / 508 mm
Gearcase ratio 1.84:1
Dry weight *Lightest model available 41 kg
Emissions Star Rating 0
Bore and stroke 55mm x 52mm
Fuel system Carbureted
Gear shift F-N-R
Trim positions 6
Exhaust system Through prop
Remote fuel tank standard (gal / L) 12 L
Oil Injection Pre-mix

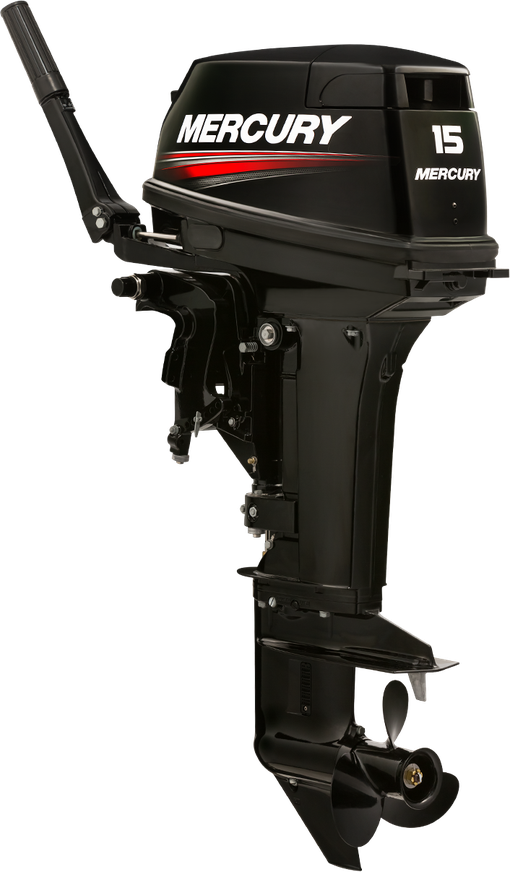

 15hp_twostroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png HP / kW 15 / 11.4
Displacement (CID/CC) 17.9 / 294
Cylinder Configuration I-2
Full throttle RPM 5200 - 5800
Fuel induction system Loop-charged (1 carb)
Starting Manual
Steering Tiller
Shaft length 15" / 381 mm 20" / 508 mm
Gearcase ratio 1.85 : 1
Dry weight *Lightest model available 41 kg
Emissions Star Rating 1
Bore and stroke 60mm x 52mm
Trim system Manual
Trim positions 6
Oil Injection Pre-mix
 25hp-twostroke_seapro_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png HP / kW 25/18.6
Engine type Inline 2
Displacement (CID/CC) 429 cc
Full throttle RPM 5000-5850
Fuel induction system Loop-charged (1 carb)
Alternator amp / Watt 6 amp / 76 watt
Starting Manual
Steering Tiller
Shaft length 15" / 381 mm 20" / 508 mm
Gearcase ratio 1.92:1
Dry weight *Lightest model available 48 kg
Bore and stroke 68mm x 59mm
Cooling system Water-cooled with thermostat & pressure-controlled
Gear shift F-N-R
Trim positions 6
Exhaust system Through prop
Color Phantom Black

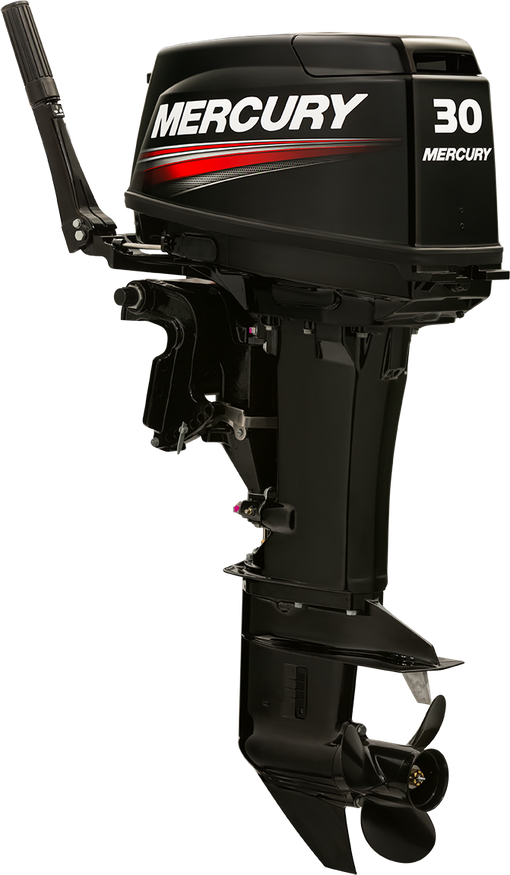

30hp_twostroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 30 / 22.5
Displacement (CID/CC) 26.3 / 430
Cylinder Configuration I-2
Full throttle RPM 4750-5500
Fuel induction system Loop-charged (1 carb)
Starting Electric Manual
Steering Remote Tiller
Shaft length 15" / 381 mm 20" / 508 mm
Gearcase ratio 1.92:1
Dry weight *Lightest model available 51 kg
Emissions Star Rating 1
Bore and stroke 68 x 59 mm
Trim positions 5
Oil Injection Pre-mix

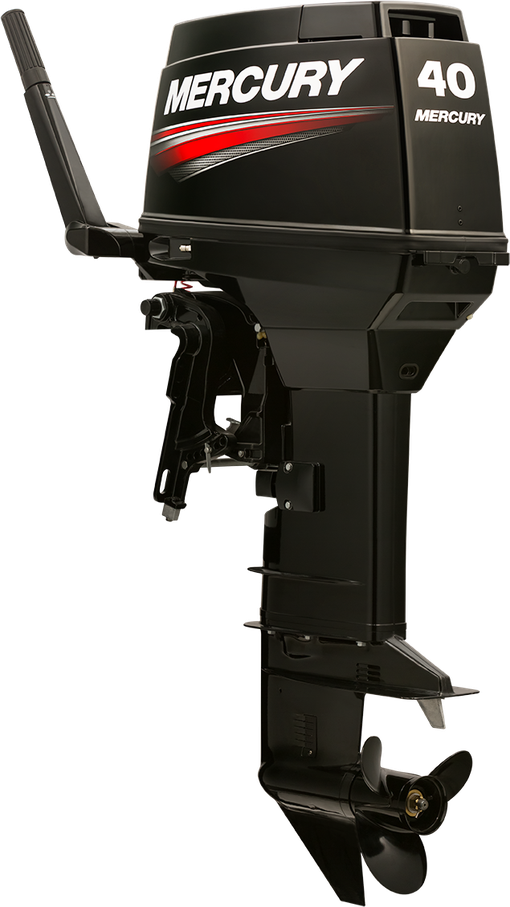

 40hp_twostroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png HP / kW 40 / 29.8
Displacement (CID/CC) 42.5 / 697
Cylinder Configuration I-3
Full throttle RPM 5000 - 5700
Fuel induction system Loop-charged (3 carb)
Starting Electric Manual
Steering Remote Tiller
Shaft length 15" / 381 mm 20" / 508 mm
Gearcase ratio 1.85 : 1
Dry weight *Lightest model available 72 kg
Bore and stroke 68 x 64
Trim system Power Trim
Oil Injection Pre-mix Standard
 40hp_twostroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png HP / kW 40 / 29.8
Displacement (CID/CC) 42.5 / 697
Cylinder Configuration I-3
Full throttle RPM 5000 - 5700
Fuel induction system Loop-charged (3 carb)
Starting Electric Manual
Steering Remote Tiller
Shaft length 15" / 381 mm 20" / 508 mm
Gearcase ratio 1.85 : 1
Dry weight *Lightest model available 72 kg
Bore and stroke 68 x 64
Trim system Power Trim
Oil Injection Pre-mix Standard
 50hp_twostroke_tiller_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png HP / kW 50 / 37.3
Displacement (CID/CC) 42.5 / 697
Cylinder Configuration I-3
Full throttle RPM 5150 - 5850
Air induction Loop-charged (3 carb)
Starting Electric Manual
Steering Remote Tiller
Shaft length 15" / 381 mm 20" / 508 mm
Gearcase ratio 1.85 : 1
Dry weight *Lightest model available 72 kg
Emissions Star Rating 1
Bore and stroke 68 x 64
Trim system 4 position Manual Power Trim
Exhaust system Through prop
Oil Injection Pre-mix Standard

Back to Top



Four Stroke 2.5hp - 60hp

Output far beyond its size

Put amazing power in the palm of your hand. These compact outboard motors take you to the fun, the fish, or whatever floats your boat – quickly and reliably. Enjoy quick acceleration to go with exhilarating speed. Easy to install and operate, with reliable starting, low vibration, and instant throttle response. It's worry-free boating at its best.
There are plenty of good reasons these outboards rule the water. Start with no-worry reliability. More low-end torque for excellent acceleration. Increased fuel economy and outstanding overall performance. Enhanced fuel injection (EFI models) for boosted efficiency. A robust electrical system with a high-output alternator to keep batteries charged and fishing electronics humming. They have everything you need, and nothing you don't.

2-5hp_fourstroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 2.5 / 1.9
Engine type 1 cylinder
Displacement (CID/CC) 5.2 / 85
Full throttle RPM 4500-5500
Fuel induction system 2-valve pushrod (overhead valve)
Recommended fuel 87 octane compatible (up to 10% ethanol)
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system Over-rev
Starting Manual
Steering Tiller with 360° turning
Shaft length 15" / 381 mm
Gearcase ratio 2.15:1
Dry weight *Lightest model available 41 lbs / 18 kg
CARB star rating 3
Emissions Star Rating 3
Bore and stroke 2.16 x 1.42" / 55 x 36 mm
Ignition CDI w/electronic spark advance
Fuel system Carbureted
Cooling system Water-cooled with thermostat
Gear shift F-N
Gearcase options Standard
Trim system 4 position
Trim positions 4
Exhaust system Above prop
Shallow water trim range (degrees) 16
Color Phantom Black

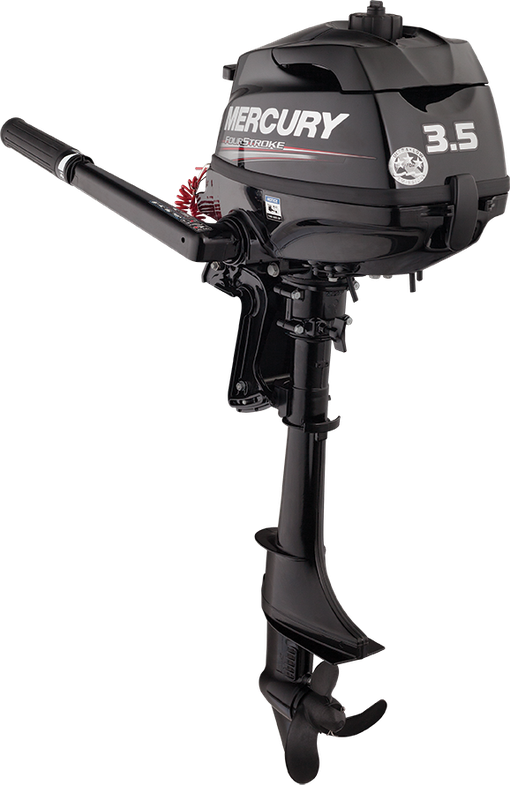

3-5hp_fourstroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 3.5 / 2.6
Engine type 1 cylinder
Displacement (CID/CC) 5.2 / 85
Full throttle RPM 5000-6000
Fuel induction system 2-valve pushrod (overhead valve)
Recommended fuel 87% octane / up to 10% ethanol
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system Over-rev
Starting Manual
Steering Tiller with 360° turning
Shaft length 15" / 381 mm
20" / 508 mm
Gearcase ratio 2.15:1
Dry weight *Lightest model available 41 lbs / 18 kg
CARB star rating 3
Emissions Star Rating 3
Bore and stroke 2.16 x 1.42" / 55 x 36 mm
Ignition CDI w/electronic spark advance
Fuel system Carbureted
Cooling system Water-cooled with thermostat
Gear shift F-N
Gearcase options Standard
Trim system 4 position
Trim positions 4
Exhaust system Above prop
Shallow water trim range (degrees) 16
Integrated fuel tank (gal / L) 0.3 / 1.1
Color Phantom Black
4hp_fourstroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 4 / 2.9
Engine type 1 cylinder
Displacement (CID/CC) 7.5 / 123
Full throttle RPM 4500-5500
Fuel induction system 2-valve pushrod (overhead valve)
Recommended fuel 87% octane / up to 10% ethanol
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system Low oil pressure
Over-rev
Starting Manual
Steering Tiller
Shaft length 15" / 381 mm
20" / 508 mm
Gearcase ratio 2.15:1
Dry weight *Lightest model available 57 lbs / 26 kg
CARB star rating 3
Bore and stroke 2.32 x 1.77" / 59 x 45 mm
Ignition CDI w/electronic spark advance
Fuel system Carbureted
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim positions 6
Exhaust system Through prop
Shallow water drive Yes
Shallow water trim range (degrees) 16
Integrated fuel tank (gal / L) 0.3 / 1.1
Optional fuel tank (gal / L) 3.2 / 12
Color Phantom Black

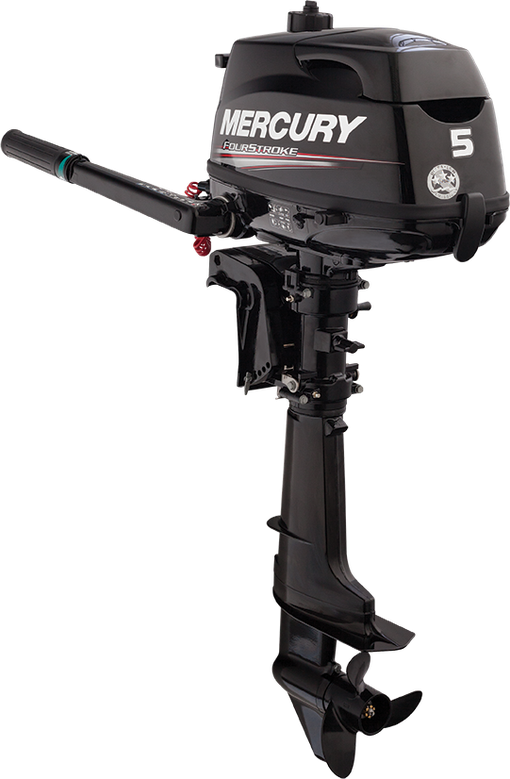

5hp_fourstroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 5 / 3.7
Engine type 1 cylinder
Displacement (CID/CC) 7.5 / 123
Full throttle RPM 4500-5500
Fuel induction system 2-valve pushrod (overhead valve)
Recommended fuel 87% octane / up to 10% ethanol
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system Low oil pressure
Over-rev
Starting Manual
Steering Tiller
Shaft length 15" / 381 mm
20" / 508 mm
Gearcase ratio 2.15:1
Dry weight *Lightest model available 57 lbs / 26 kg
CARB star rating 3
Bore and stroke 2.32 x 1.77" / 59 x 45 mm
Ignition CDI w/electronic spark advance
Fuel system Carbureted
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim positions 6
Exhaust system Through prop
Shallow water drive Yes
Shallow water trim range (degrees) 16
Integrated fuel tank (gal / L) 0.3 / 1.1
Optional fuel tank (gal / L) 3.2 / 12
Color Phantom Black
6hp_fourstroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 6 / 4.4
Engine type 1 cylinder
Displacement (CID/CC) 7.5 / 123
Full throttle RPM 5000-6000
Fuel induction system 2-valve pushrod (overhead valve)
Recommended fuel 87% octane / up to 10% ethanol
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system Low oil pressure
Over-rev
Starting Manual
Steering Tiller
Shaft length 15" / 381 mm
20" / 508 mm
Gearcase ratio 2.15:1
Dry weight *Lightest model available 57 lbs / 26 kg
CARB star rating 3
Emissions Star Rating 3
Bore and stroke 2.32 x 1.77" / 59 x 45 mm
Ignition CDI w/electronic spark advance
Fuel system Carbureted
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim positions 6
Exhaust system Through prop
Shallow water drive Yes
Shallow water trim range (degrees) 16
Integrated fuel tank (gal / L) 0.3 / 1.1
Optional fuel tank (gal / L) 3.2 / 12
Color Phantom Black
mm_mercury_8hp_3-4_port-rear.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 8 / 5.9
Engine type Inline 2
Displacement (CID/CC) 12.8 / 208
Full throttle RPM 5000-6000
Fuel induction system 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt 6 amp / 76 watt
Recommended fuel 87% octane / up to 10% ethanol
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system Low oil pressure
Over-rev
Starting Electric
Manual
Steering Tiller
Shaft length 15" / 381 mm
20" / 508 mm
Gearcase ratio 2.08:1
Dry weight *Lightest model available 84 lbs / 38 kg
CARB star rating 3
Emissions Star Rating 3
Bore and stroke 2.16 x 1.73" / 55 x 44 mm
Ignition CDI w/electronic spark advance
Fuel system Carbureted
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim positions Ratcheting
Exhaust system Through prop
Shallow water drive Yes
Shallow water trim range (degrees) 16
Integrated fuel tank (gal / L) 3.2 / 12
Remote fuel tank standard (gal / L) 3.2 / 12
Color Phantom Black
mm_mercury_99hp_3-4_port-rear.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 9.9 / 7.3
Engine type Inline 2
Displacement (CID/CC) 12.8 / 208
Full throttle RPM 5000-6000
Fuel induction system 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt 6 amp / 76 watt
Recommended fuel 87% octane / up to 10% ethanol
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system Low oil pressure Over-rev
Starting Electric Manual
Steering Remote Tiller
Shaft length 15" / 381 mm 20" / 508 mm 25" / 635 mm
Gearcase ratio 2.08:1
Dry weight *Lightest model available 84 lbs / 38 kg
CARB star rating 3
Emissions Star Rating 3
Bore and stroke 2.16 x 1.73" / 55 x 44 mm
Ignition CDI w/electronic spark advance
Fuel system Carbureted
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim positions Ratcheting
Exhaust system Through prop
Shallow water drive Yes
Shallow water trim range (degrees) 16
Integrated fuel tank (gal / L) 3.2 / 12
Remote fuel tank standard (gal / L) 3.2 / 12
Color Phantom Black

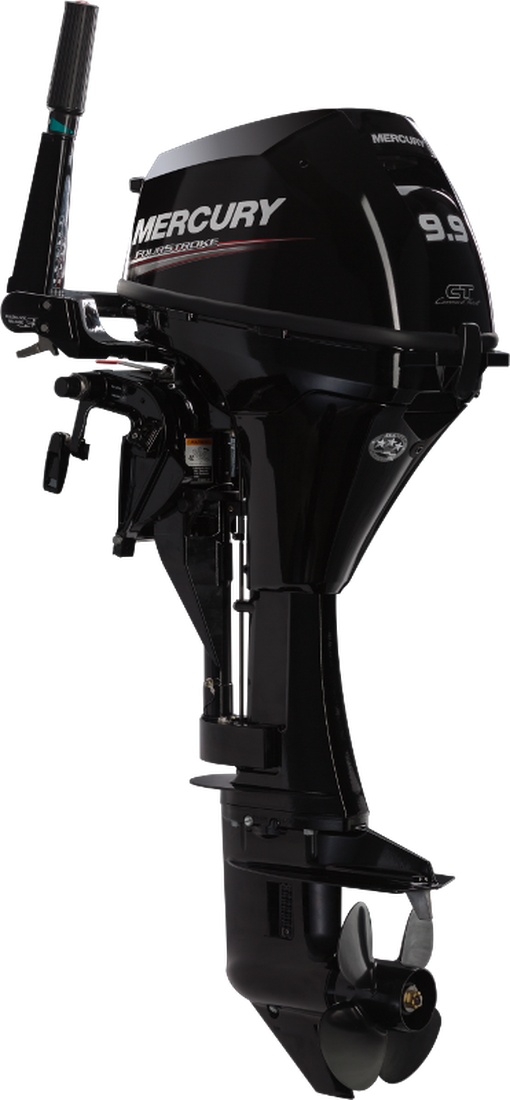

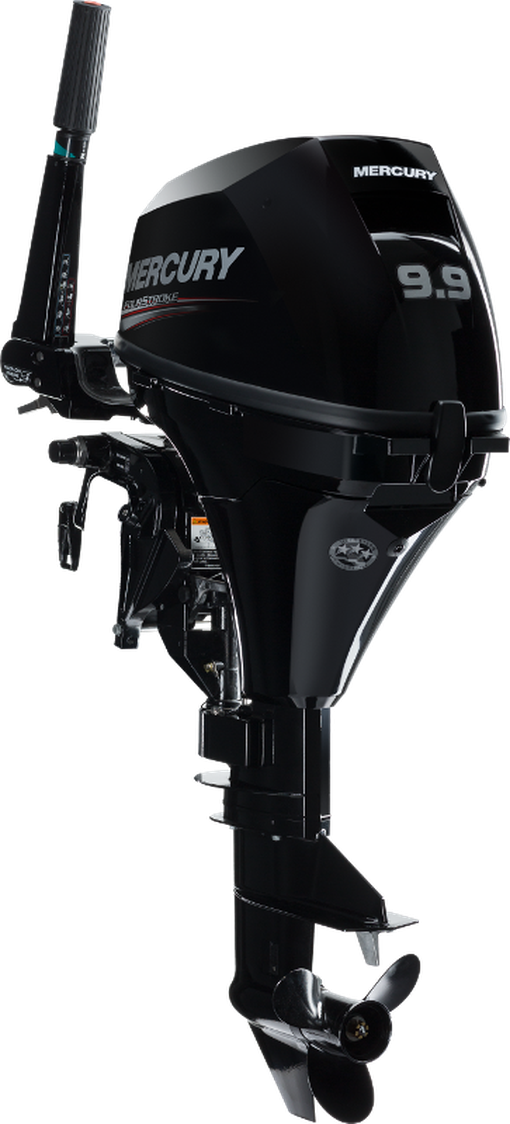

fs_9-9ct_3-4_port.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 9.9 / 7.3
Engine type Inline 2
Displacement (CID/CC) 12.8 / 208
Full throttle RPM 5000-6000
Fuel induction system 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt 6 amp / 76 watt
Recommended fuel 87% octane / up to 10% ethanol
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system Low oil pressure Over-rev
Starting Electric Manual
Steering Remote Tiller
Shaft length 20" / 508 mm 25" / 635 mm
Gearcase ratio 2.42:1
Dry weight *Lightest model available 96 lbs / 44 kg
CARB star rating 3
Emissions Star Rating 3
Bore and stroke 2.16 x 1.73" / 55 x 44 mm
Ignition CDI w/electronic spark advance
Fuel system Carbureted
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Command Thrust
Trim system Power Tilt
Trim positions Ratcheting
Exhaust system Through prop
Shallow water drive Yes
Shallow water trim range (degrees) 16
Integrated fuel tank (gal / L) 3.2 / 12
Remote fuel tank standard (gal / L) 3.2 / 12
Color Phantom Black

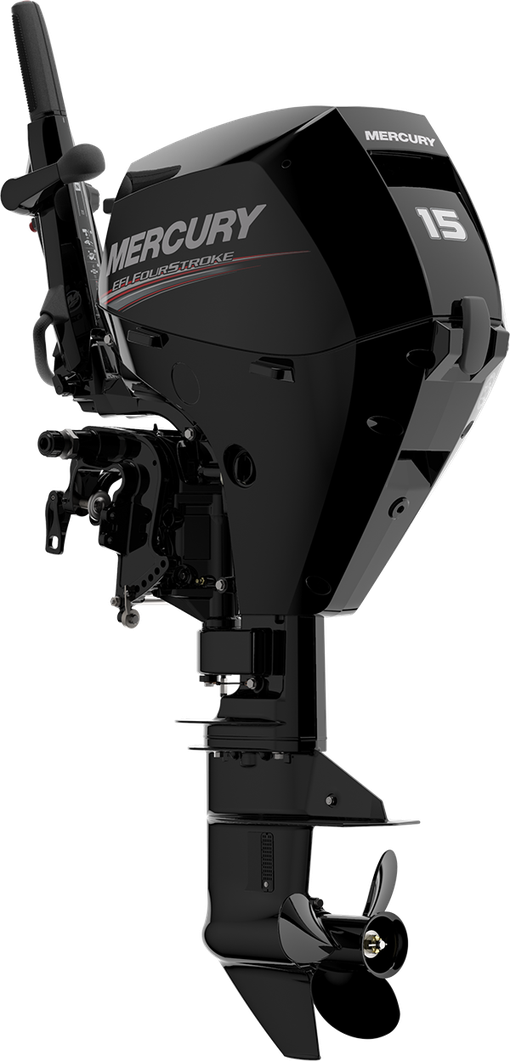

mm_fs_15hp_w_tiller-port-3_4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 15 / 11.1
Engine type Inline 2
Displacement (CID/CC) 20.3 / 333
Full throttle RPM 5700 - 6200
Fuel induction system 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt 12/145 electric
Recommended fuel 87 octane compatible (up to 10% ethanol)
Recommended oil 25W-40 Synthetic Blend
Mercury FC-W 10W-30 4-Stroke Marine Oil
Engine protection operator warning system Low oil pressure
Over-rev
Overheat
Sensor failure
Starting Electric
Manual
Steering Remote Tiller
Shaft length 15" / 381 mm
20" / 508 mm
Gearcase ratio 2.15:1
Dry weight *Lightest model available 99 lbs / 45 kg
CARB star rating 3
Bore and stroke 2.40 x 2.24" / 61 x 57 mm
Ignition CDI w/electronic spark advance
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Manual
Power Tilt
Trim positions 6
Exhaust system Through prop
Shallow water drive Yes
Shallow water trim range (degrees) 16
Remote fuel tank (optional) Yes
Remote fuel tank standard (gal / L) 6.6 / 25
Color Phantom Black

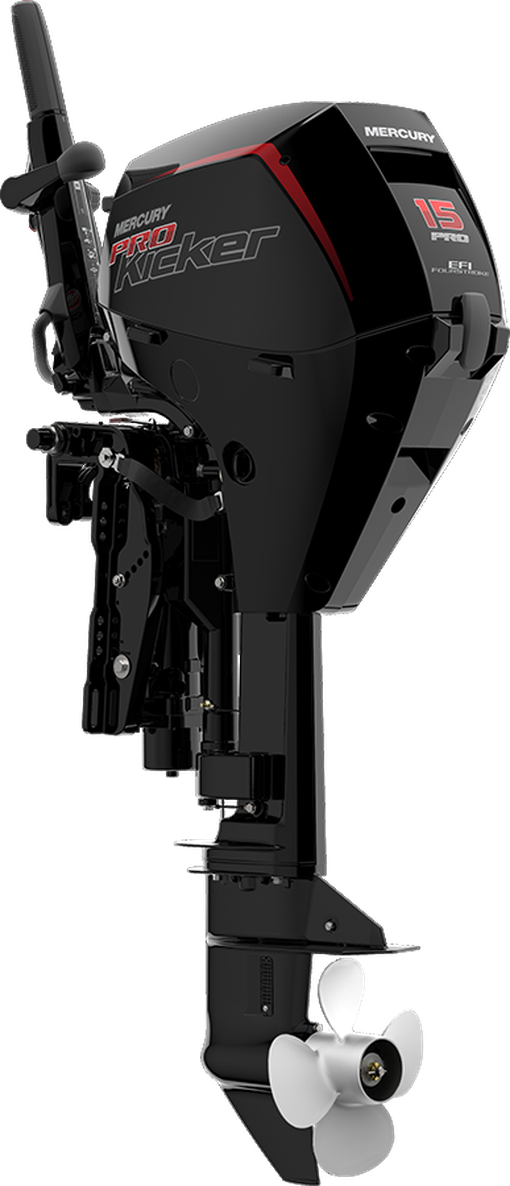

prokicker_fs_15hp_wtiller_port-3_4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 15 / 11.1
Engine type Inline 2
Displacement (CID/CC) 20.3 / 333
Full throttle RPM 5700 - 6200
Fuel induction system Single Overhead Cam
Alternator amp / Watt 12/145 electric
Recommended fuel 87% octane / up to 10% ethanol
Recommended oil 25W-40 Synthetic Blend Mercury FC-W 10W-30 4-Stroke Marine Oil
Engine protection operator warning system Low oil pressure Over-rev Overheat Sensor failure
Starting Electric
Steering Remote Tiller
Shaft length 20" / 508 mm 25" / 635 mm
Gearcase ratio 2.15:1
Dry weight *Lightest model available 122 lbs / 56 kg
CARB star rating 3
Emissions Star Rating 3
Bore and stroke 2.40 x 2.36" / 61 x 60 mm
Ignition CDI w/electronic spark advance
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Power Tilt
Trim positions 6
Exhaust system Through prop
Shallow water drive Yes
Shallow water trim range (degrees) 16
Remote fuel tank (optional) Yes
Remote fuel tank standard (gal / L) 6.6 / 25
Color Phantom Black

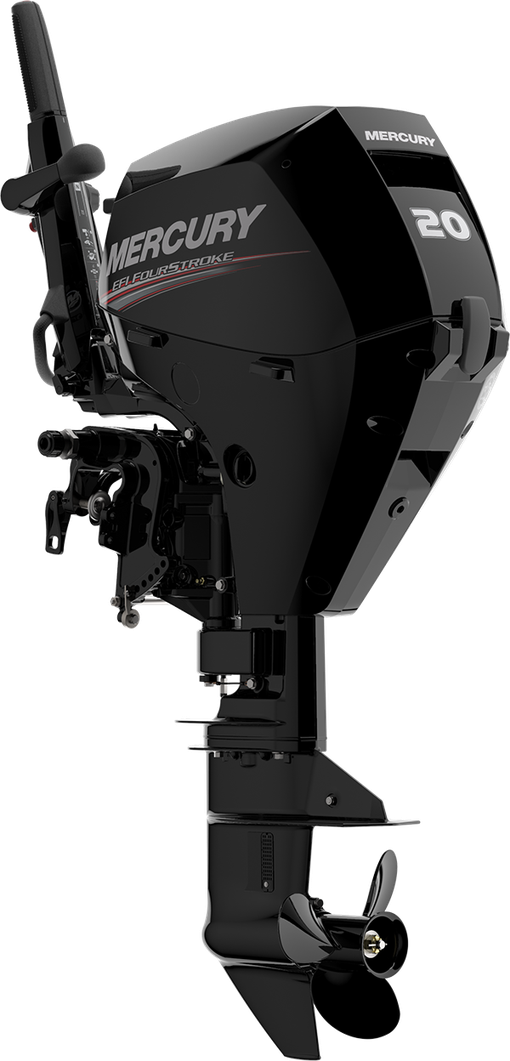

mm_fs_20hp_w_tiller-port-3_4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 20 / 14.7
Engine type Inline 2
Displacement (CID/CC) 20.3 / 333
Full throttle RPM 5700 - 6200
Fuel induction system Single Overhead Cam
Alternator amp / Watt 12/145 electric
Recommended fuel 87% octane / up to 10% ethanol
Recommended oil 25W-40 Synthetic Blend
Mercury FC-W 10W-30 4-Stroke Marine Oil
Engine protection operator warning system Low oil pressure
Over-rev
Overheat
Sensor failure
Starting Electric
Manual
Steering Remote
Tiller
Shaft length 15" / 381 mm
20" / 508 mm
Gearcase ratio 2.15:1
Dry weight *Lightest model available 99 lbs / 45 kg
CARB star rating 3
Emissions Star Rating 3
Bore and stroke 2.40 x 2.24" / 61 x 57 mm
Ignition CDI w/electronic spark advance
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Manual
Power Tilt
Trim positions 6
Exhaust system Through prop
Shallow water drive Yes
Shallow water trim range (degrees) 16
Remote fuel tank (optional) Yes
Remote fuel tank standard (gal / L) 6.6 / 25
Color Phantom Black

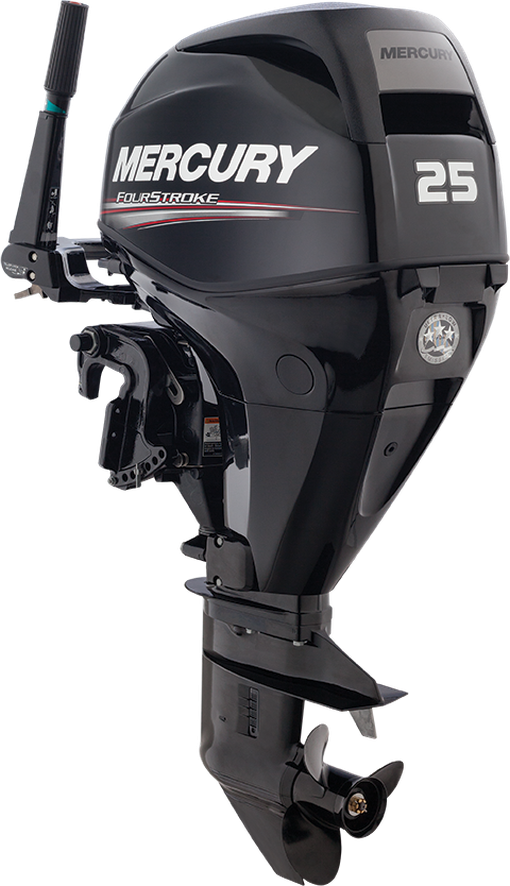

25hp_fourstroke_3qtr_port-aft_tilup.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 25 / 18.6
Engine type Inline 3
Displacement (CID/CC) 32.1 / 526
Full throttle RPM 5000-6000
Fuel induction system 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt 15 amp / 186 watt
Recommended fuel 87% octane / up to 10% ethanol
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system Low oil pressure
Over-rev
Overheat
Sensor failure
Starting Electric (turn-key)
Manual
Steering Remote Tiller
Shaft length 15" / 381 mm
20" / 508 mm
Gearcase ratio 1.92:1
Dry weight *Lightest model available 157 lbs / 71 kg
Emissions Star Rating 3
Bore and stroke 2.40 x 2.36" / 61 x 60 mm
Ignition CDI w/electronic spark advance
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Manual Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 16
Remote fuel tank standard (gal / L) 6.6 / 25
Color Phantom Black

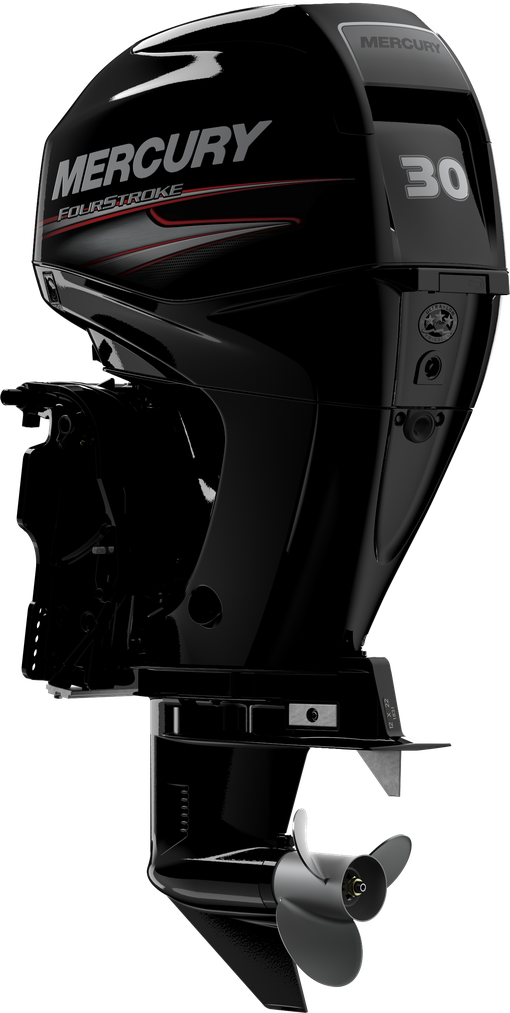

mm_30hp_mh_fs_shrtshft_rear_port_3_4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 30 / 22.4
Engine type Inline 3
Displacement (CID/CC) 32.1 / 526
Full throttle RPM 5250-6250
Fuel induction system 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt 15 amp / 186 watt
Recommended fuel 87% octane / up to 10% ethanol
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system Low oil pressure
Over-rev
Overheat
Sensor failure
Starting Electric (turn-key)
Manual
Steering Remote Tiller
Shaft length 15" / 381 mm
20" / 508 mm
Gearcase ratio 1.92:1
Dry weight *Lightest model available 172 lbs / 78 kg
Emissions Star Rating 3
Bore and stroke 2.40 x 2.36" / 61 x 60 mm
Ignition CDI w/electronic spark advance
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Gas assist
Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 16
Remote fuel tank standard (gal / L) 6.6 / 25
Color Phantom Black

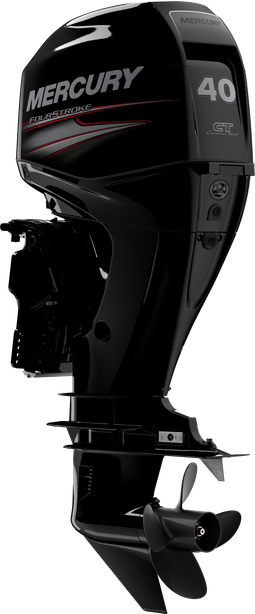

40CT  four stroke photo.png  HP / kW 40 / 30
Engine type Inline 4
Displacement (CID/CC) 60.8 / 995
Full throttle RPM 5500-6000
Fuel induction system 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt 18 amp / 226 watt
Recommended fuel Unleaded 91 RON Minimum
Recommended oil Mercury FourStroke 25W40 Marine Oil
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric (turn-key)
Steering Big Tiller Compatible Remote Tiller Kit
Shaft length 20" / 508 mm
Gearcase ratio 2.33:1
Dry weight *Lightest model available 118 kg
Emissions Star Rating 3
Bore and stroke 2.56 x 2.95" / 65 x 75 mm
Ignition ECM 07 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Command Thrust
Trim system Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 20
Remote fuel tank (optional) Yes
Color Phantom Black
Lubrication system Wet sump

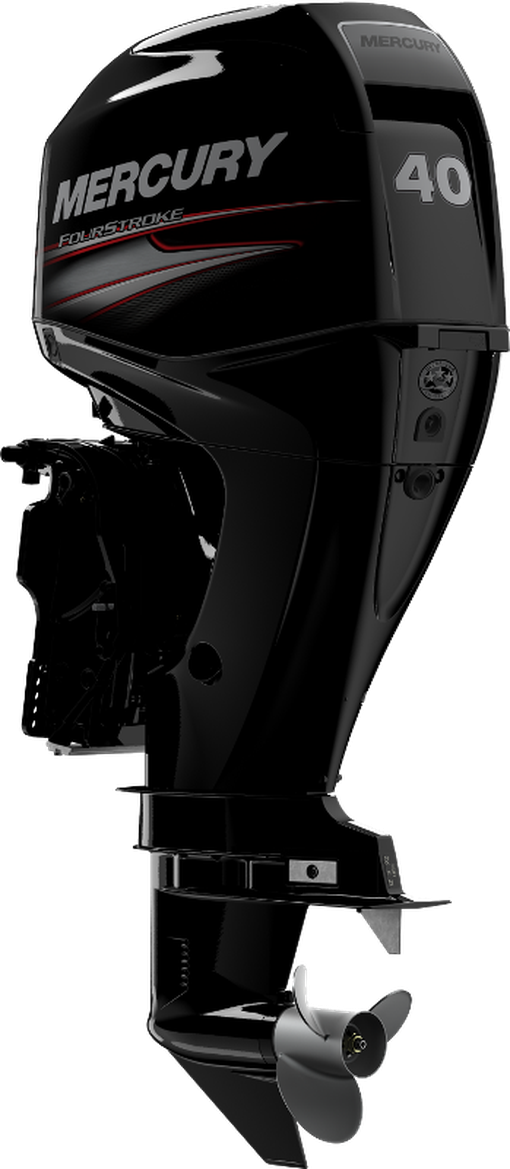

mm_40hp_fs_rear_port_3_4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 40 / 30
Engine type Inline 3
Displacement (CID/CC) 45.6 / 747
Full throttle RPM 5500-6000
Fuel induction system 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt 18 amp / 226 watt
Recommended fuel 87% octane / up to 10% ethanol
Recommended oil Mercury FourStroke 25W40 Marine Oil
Engine protection operator warning system Low oil pressure Over-rev Overheat
Compatible with SmartCraft digital technology Yes
Starting Electric (turn-key)
Steering Big Tiller Compatible Remote Tiller Kit
Shaft length 15" / 381 mm 20" / 508 mm
Gearcase ratio 2.00:1
Dry weight *Lightest model available 216 lbs / 98 kg
Emissions Star Rating 3
Bore and stroke 2.56 x 2.95" / 65 x 75 mm
Ignition ECM 70
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Gas assist Power Tilt Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 20
Remote fuel tank (optional) Yes
Color Phantom Black
Lubrication system Wet sump

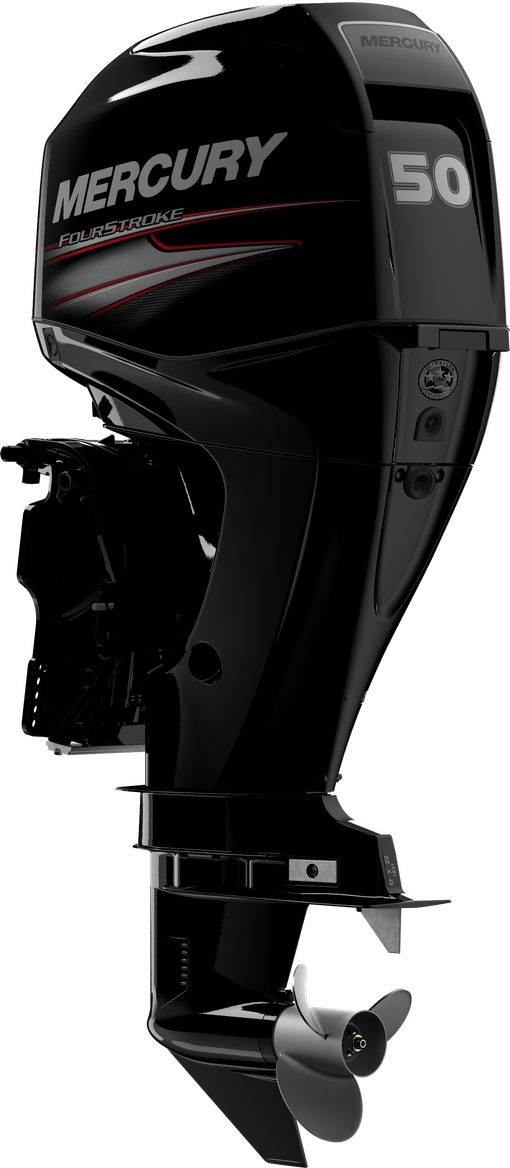

 mm_50hp_fs_rear_port_3_4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png HP / kW 50 / 37
Engine type Inline 4
Displacement (CID/CC) 60.8 / 995
Full throttle RPM 5500-6000
Fuel induction system 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt 18 amp / 226 watt
Recommended fuel 87 octane
Recommended oil Mercury FourStroke 25W40 Marine Oil
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric (turn-key)
Steering Remote
Shaft length 20" / 508 mm
Gearcase ratio 1.83:1
Dry weight *Lightest model available 247 lbs / 112 kg
CARB star rating 3
Bore and stroke 2.56 x 2.95" / 65 x 75 mm
Ignition ECM 70
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 20
Remote fuel tank (optional) Yes
Color Phantom Black
Lubrication system Wet sump
mm_50hp_ct_fs_rear_port_-_3_4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 50 / 37
Engine type Inline 4
Displacement (CID/CC) 60.8 / 995
Full throttle RPM 5500-6000
Fuel induction system 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt 18 amp / 226 watt
Recommended fuel Unleaded 91 RON Minimum
Recommended oil Mercury FourStroke 25W40 Marine Oil
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric (turn-key)
Steering Big Tiller Compatible Remote Tiller Kit
Shaft length 20" / 508 mm
Gearcase ratio 2.33:1
Dry weight *Lightest model available 118 kg
Emissions Star Rating 3
Bore and stroke 2.56 x 2.95" / 65 x 75 mm
Ignition ECM 07 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Command Thrust
Trim system Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 20
Remote fuel tank (optional) Yes
Color Phantom Black
Lubrication system Wet sump

mm_60hp_fs_rear_port_3_4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 60 / 45
Engine type Inline 4
Displacement (CID/CC) 60.8 / 995
Full throttle RPM 5500-6000
Fuel induction system 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt 18 amp / 226 watt
Recommended fuel Unleaded 91 RON Minimum
Recommended oil Mercury FourStroke 25W40 Marine Oil
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric (turn-key)
Steering Big Tiller Compatible
Remote
Tiller Kit
Shaft length 20" / 508 mm
Gearcase ratio 1.83:1
Dry weight *Lightest model available 247 lbs / 112 kg
Emissions Star Rating 3
Bore and stroke 2.56 x 2.95" / 65 x 75 mm
Ignition ECM 70
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 20
Remote fuel tank (optional) Yes
Color Phantom Black
Lubrication system Wet sump

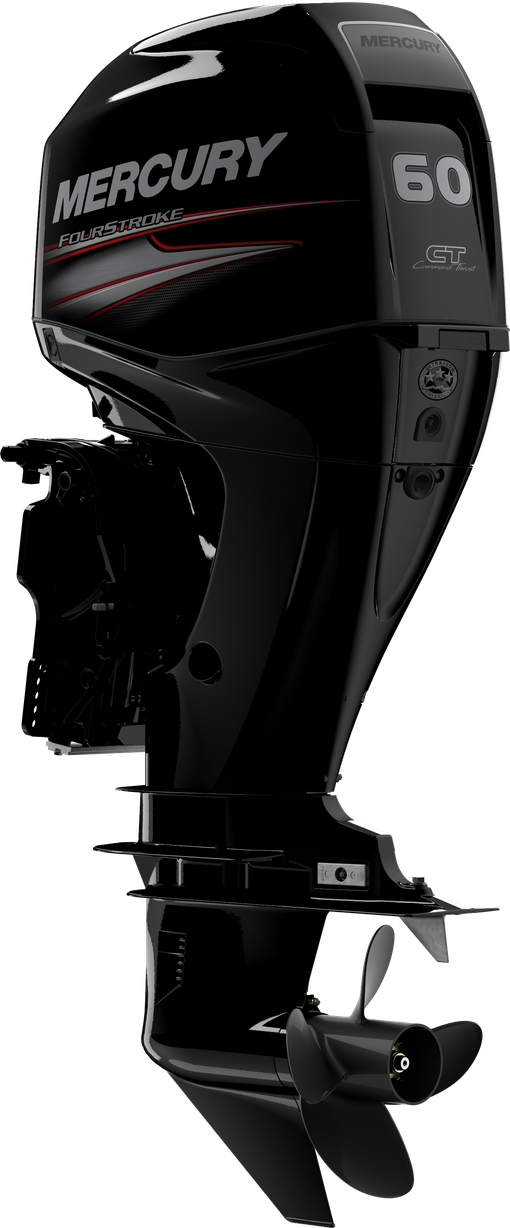

mm_60hp_ct_fs_rear_port-_3_4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 60 / 45
Engine type Inline 4
Displacement (CID/CC) 60.8 / 995
Full throttle RPM 5500-6000
Fuel induction system 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt 18 amp / 226 watt
Recommended fuel Unleaded 91 RON Minimum
Recommended oil Mercury FourStroke 25W40 Marine Oil
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric (turn-key)
Steering Big Tiller Compatible Remote Tiller Kit
Shaft length 20" / 508 mm 25" / 635 mm
Gearcase ratio 2.33:1
Dry weight *Lightest model available 118 kg
Emissions Star Rating 3
Bore and stroke 2.56 x 2.95" / 65 x 75 mm
Ignition ECM 07 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Command Thrust
Trim system Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 20
Remote fuel tank (optional) Yes
Color Phantom Black
Lubrication system Wet sump

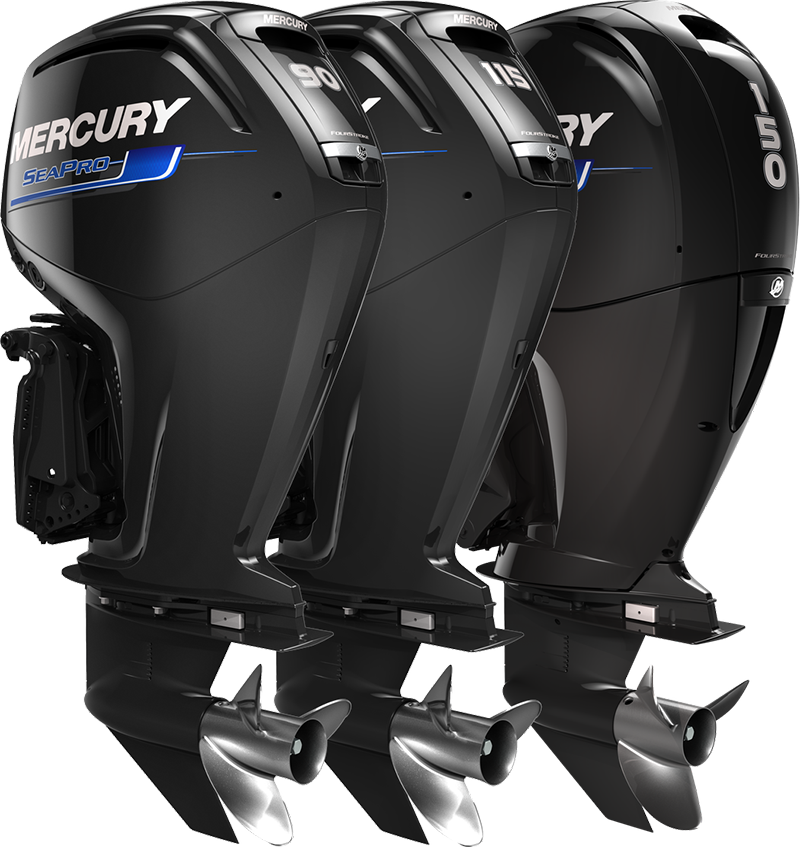

Four Stroke 75hp-150hp

Extraordinary engineering for extraordinary speed.

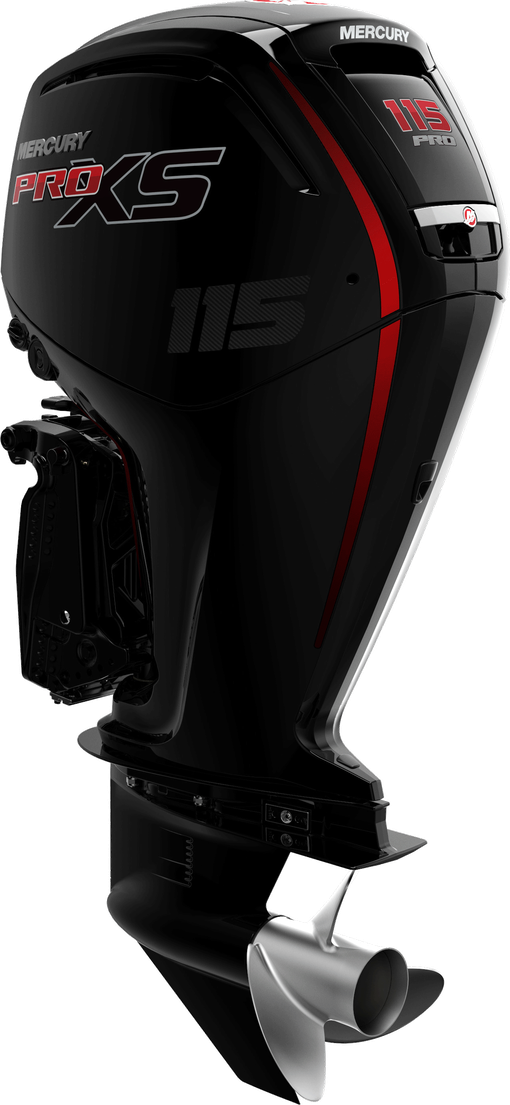

When you're feeding your need for speed, Mercury Pro XS engines will get you there faster. Engineered to meet the demands for high speeds on fresh or salt water, these high-performance motors deliver a winning combination of power, acceleration, durability, and fuel efficiency.

Embrace possibility

Mercury FourStroke outboard motors are incredibly powerful and efficient and they feature a wide range of applications. Crafted for less weight and high displacement, they generate abundant torque and immediate power. And because they don’t have to work as hard as heavier engines or those with lower displacement, they make boats plane faster and accelerate better and they provide optimal fuel efficiency at cruising speed.

None More Durable. Or Efficient.

Heavier boats used for pleasure, fishing or commercial applications often sit high on the water and are hydro-dynamically different from other lighter boats. To address those differences and in response to additional challenges, Mercury developed its Command Thrust family of outboards.

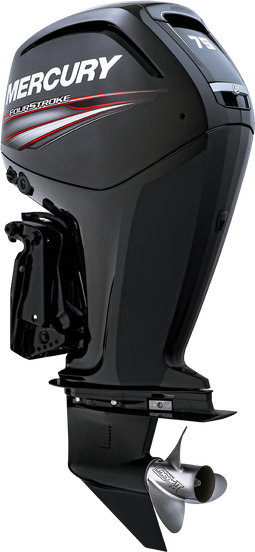

75hp_fourstroke_3qtr_port_aft.png__255x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 75 / 56
Engine type 8-valve single overhead cam (SOHC)
Inline 4
Displacement (L) 2.1
Full throttle RPM 4500-5500
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel Unleaded 91 RON Minimum
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Smart Start Electric
Controls Mechanical throttle & shift
Steering Big Tiller Compatible
Dual cable mechanical
Hydraulic power steering
Shaft length 20" / 508 mm
Gearcase ratio 2.07:1
Dry weight *Lightest model available 359 lbs / 163 kg
Emissions Star Rating 3
Bore and stroke 3.5 x 3.2" / 90 x 81 mm
Ignition SmartCraft ECM 70 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Power Tilt
Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 20
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 5.5 qts / 5.2 l
Maximum Trim Range 22° (-6° to 16°)
Maximum Tilt Range 70° (-6° to 64°)

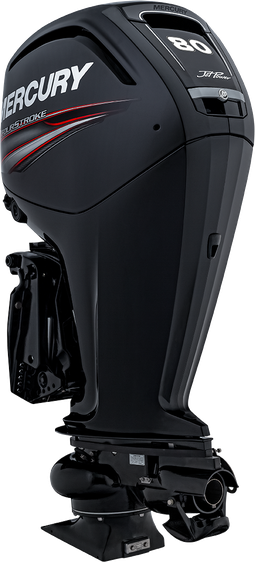

80hp_fourstroke_jet_3qtr_port-aft.png__255x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 80 / 59.2
Engine type 8-valve single overhead cam (SOHC)
Inline 4
Displacement (L) 2.1
Full throttle RPM 4500-5500
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel Unleaded 90RON minimum
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Smart Start Electric
Controls Mechanical throttle & shift
Steering Big Tiller Compatible
Dual cable mechanical
Hydraulic power steering
Shaft length 20" / 508 mm
Gearcase ratio 2.07:1
Dry weight *Lightest model available 363 lbs / 165 kg
Emissions Star Rating 3
Bore and stroke 3.5 x 3.2" / 90 x 81 mm
Ignition SmartCraft ECM 70 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Power Tilt
Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 20
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 5.5 qts / 5.2 l
Maximum Trim Range 22° (-6° to 16°)
Maximum Tilt Range 70° (-6° to 64°)
90hp_fourstroke_3qtr_port_aft.png__255x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 90 / 67
Engine type 8-valve single overhead cam (SOHC)
Inline 4
Displacement (L) 2.1
Full throttle RPM 5000-6000
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Smart Start Electric
Controls Mechanical throttle & shift
Steering Big Tiller Compatible
Dual cable mechanical
Hydraulic power steering
Shaft length 20" / 508 mm
25" / 635 mm
Gearcase ratio 2.07:1 or 2.38:1 (CT model)
Dry weight *Lightest model available 359 lbs / 163 kg; 363 lbs / 165 kg (CT model)
CARB star rating 3
Bore and stroke 3.5 x 3.2" / 90 x 81 mm
Ignition SmartCraft ECM 70 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Command Thrust
Standard
Trim system Power Tilt
Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 20
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 5.5 qts / 5.2 l
Maximum Trim Range 22° (-6° to 16°)
Maximum Tilt Range 70° (-6° to 64°)

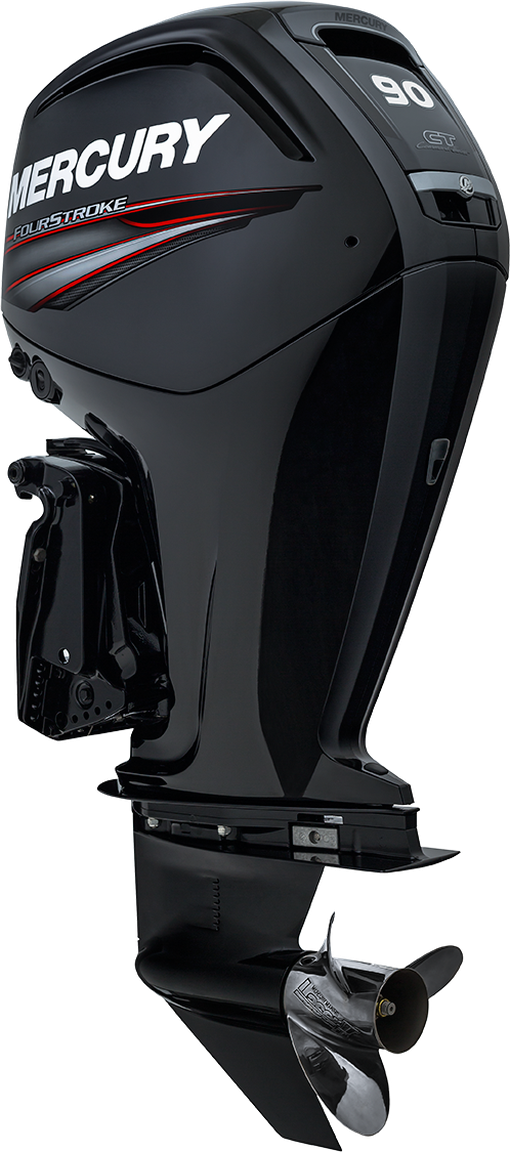

90hp_fourstroke_commandthrust_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png
HP / kW 90 / 67
Engine type 8-valve single overhead cam (SOHC) Inline 4
Displacement (L) 2.1
Full throttle RPM 5000-6000
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel Unleaded 91 RON Minimum
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Smart Start Electric
Controls Mechanical throttle & shift
Steering Big Tiller Compatible Dual cable mechanical Hydraulic power steering
Shaft length 20" / 508 mm 25" / 635 mm
Gearcase ratio 2.38:1
Dry weight *Lightest model available 363 lbs / 165 kg
Emissions Star Rating 3
Bore and stroke 3.5 x 3.2" / 90 x 81 mm
Ignition SmartCraft ECM 70 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Command Thrust
Trim system Power Tilt Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 20
Counter Rotation Available
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 5.5 qts / 5.2 l
Maximum Trim Range 22° (-6° to 16°)
Maximum Tilt Range 70° (-6° to 64°)

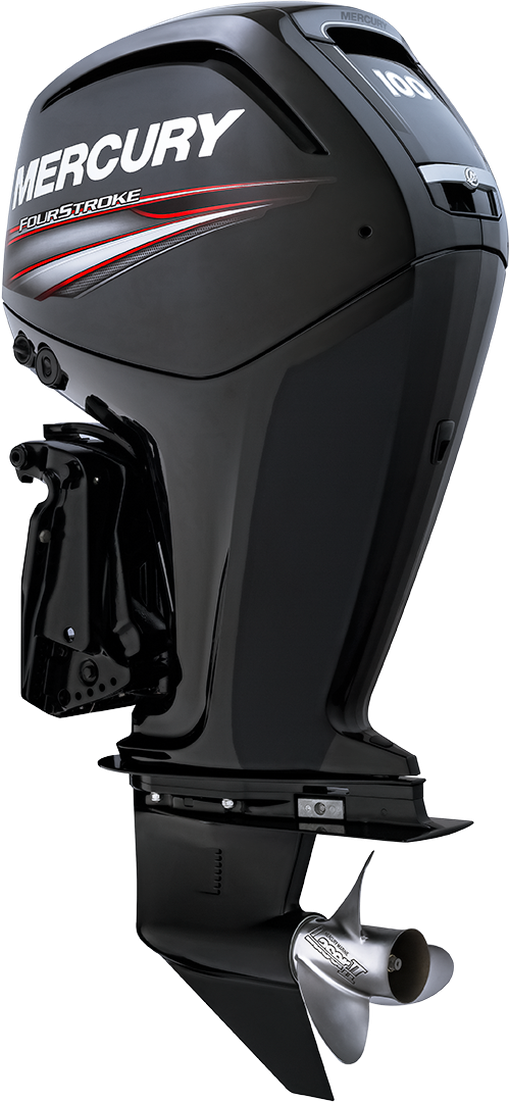

100hp_fourstroke_3qtr_port_aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 100 / 73.6
Engine type 8-valve single overhead cam (SOHC)
Inline 4
Displacement (L) 2.1
Full throttle RPM 5000-6000
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel Unleaded 90RON minimum
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Smart Start Electric
Controls Mechanical throttle & shift
Steering Big Tiller Compatible
Dual cable mechanical
Hydraulic power steering
Shaft length 20" / 508 mm
25" / 635 mm
Gearcase ratio 2.07:1
Dry weight *Lightest model available 363 lbs / 165 kg
Emissions Star Rating 3
Bore and stroke 3.5 x 3.2" / 90 x 81 mm
Ignition SmartCraft ECM 70 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Power Tilt
Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 20
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 5.5 qts / 5.2 l
Maximum Trim Range 22° (-6° to 16°)
Maximum Tilt Range 70° (-6° to 64°)
100hp_ct_fourstroke_3qtr_port_aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale (1).png
HP / kW 100 / 73.6
Engine type 8-valve single overhead cam (SOHC) Inline 4
Displacement (L) 2.1
Full throttle RPM 5000-6000
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel Unleaded 90RON minimum
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Smart Start Electric
Controls Mechanical throttle & shift
Steering Big Tiller Compatible Dual cable mechanical Hydraulic power steering
Shaft length 20" / 508 mm 25" / 635 mm
Gearcase ratio 2.38:1
Dry weight *Lightest model available 363 lbs / 165 kg
Emissions Star Rating 3
Bore and stroke 3.5 x 3.2" / 90 x 81 mm
Ignition SmartCraft ECM 70 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Command Thrust
Trim system Power Tilt Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 20
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 5.5 qts / 5.2 l
Maximum Trim Range 22° (-6° to 16°)
Maximum Tilt Range 70° (-6° to 64°)
115hp_fourstroke_commandthrust_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png
HP / kW 115 / 84.6
Engine type 8-valve single overhead cam (SOHC) Inline 4
Displacement (L) 2.1
Full throttle RPM 5000-6000
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel Unleaded 91 RON Minimum
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Smart Start Electric
Controls Mechanical throttle & shift
Steering Big Tiller Compatible Dual cable mechanical Hydraulic power steering
Shaft length 20" / 508 mm 25" / 635 mm
Gearcase ratio 2.38:1
Dry weight *Lightest model available 363 lbs / 165 kg
Emissions Star Rating 3
Bore and stroke 3.5 x 3.2" / 90 x 81 mm
Ignition SmartCraft ECM 70 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Command Thrust
Trim system Power Tilt Power Trim
Exhaust system Through prop
Shallow water trim range (degrees) 20
Counter Rotation Available
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 5.5 qts / 5.2 l
Maximum Trim Range 22° (-6° to 16°)
Maximum Tilt Range 70° (-6° to 64°)
mm_115pro-xs_fs_rear_3-4-port.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png
HP / kW 115 / 86
Engine type 8-valve single overhead cam (SOHC) Inline 4
Displacement (L) 2.1
Full throttle RPM 5300-6300
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric (turn-key) Smart Start Electric
Controls Mechanical throttle & shift
Steering Big Tiller Compatible Dual cable mechanical Hydraulic power steering
Shaft length 20" / 508 mm 25" / 635 mm
Gearcase ratio 2.38:1
Dry weight *Lightest model available 363 lbs / 165 kg
Bore and stroke 3.5 x 3.2 /90 x 81
Ignition SmartCraft ECM 07 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Command Thrust
Trim system Power Tilt Power Trim
Exhaust system Through prop
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 5.5 qts / 5.2 l
Maximum Trim Range 22° (-6° to 16°)
Maximum Tilt Range 70° (-6° to 64°)

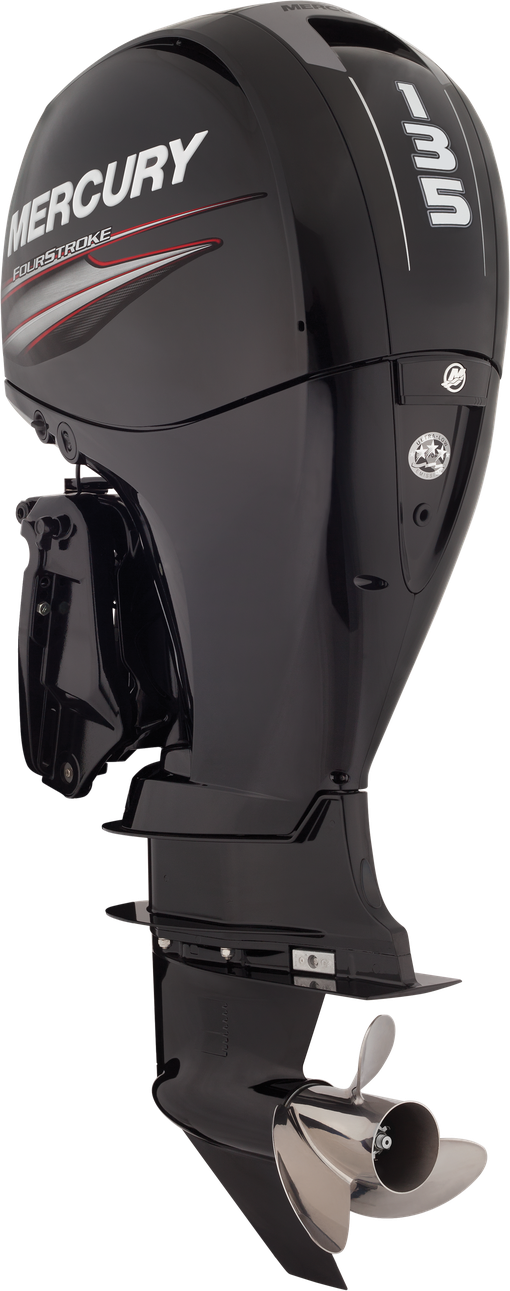

135-fourstroke_angle_port.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 135 / 101
Engine type 8-valve single overhead cam (SOHC)
Inline 4
Displacement (L) 3.0
Full throttle RPM 4800-5300
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt 60 amp / 756 watt (Belt-Driven)
Recommended fuel Unleaded 91 RON Minimum
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric (turn-key)
Smart Start Electric
Controls Mechanical throttle & shift
Steering Big Tiller Compatible
Dual cable mechanical
Electro-Hydraulic Power Steering Optional on Duals
Hydraulic power steering
Shaft length 20" / 508 mm
25" / 635 mm
Gearcase ratio 1.92:1
Dry weight *Lightest model available 455 lbs / 206 kg
Emissions Star Rating 3
Bore and stroke 4.0 x 3.6" / 102 x 92 mm
Ignition SmartCraft ECM 70 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Power Tilt
Power Trim
Exhaust system Through prop
Counter Rotation Available
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 6.3 qts / 6.0l
Maximum Trim Range 22° (-6° to 16°)
Maximum Tilt Range 73° (-6° to 67°)
150hp_fourstroke_3qtr_port-aft.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 150 / 110
Engine type 8-valve single overhead cam (SOHC)
Inline 4
Displacement (L) 3.0
Full throttle RPM 5000-5800
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt 60 amp / 756 watt (Belt-Driven)
Recommended fuel Unleaded 91 RON Minimum
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric (turn-key)
Smart Start Electric
Controls Mechanical throttle & shift
Steering Big Tiller Compatible
Dual cable mechanical
Electro-Hydraulic Power Steering Optional on Duals
Hydraulic power steering
Shaft length 20" / 508 mm
25" / 635 mm
Gearcase ratio 1.92:1
Dry weight *Lightest model available 455 lbs / 206 kg
Emissions Star Rating 3
Bore and stroke 4.0 x 3.6" / 102 x 92 mm
Ignition SmartCraft ECM 70 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Power Tilt
Power Trim
Exhaust system Through prop
Counter Rotation Available
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 6.3 qts / 6.0l
Maximum Trim Range 22° (-6° to 16°)
Maximum Tilt Range 73° (-6° to 67°)

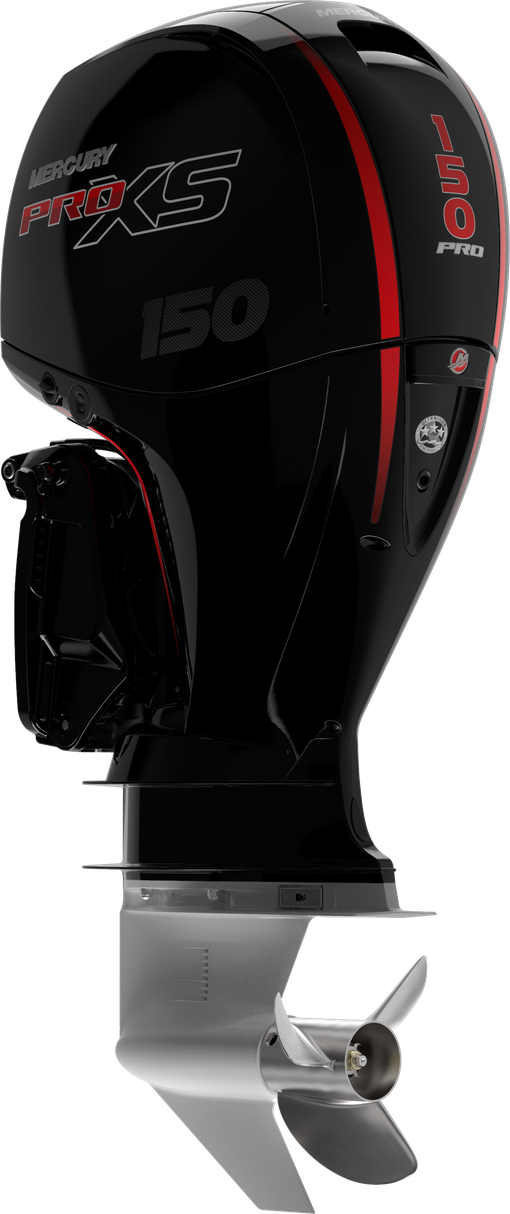

150_proxs_rp3-4_1.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 150 / 110
Engine type 8-valve single overhead cam (SOHC) Inline 4
Displacement (CID/CC) 183
Displacement (L) 3.0
Full throttle RPM 5200-6000
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric (turn-key)
Controls Mechanical throttle & shift
Steering Dual cable mechanical Hydraulic power steering
Shaft length 20" / 508 mm 25" / 635 mm
Dry weight *Lightest model available 456/207
CARB star rating 3
Bore and stroke 4.0" x 3.6" / 102mm x 92mm
Ignition SmartCraft ECM 07 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Trim system Power Tilt Power Trim
Exhaust system Through prop
Oil Capacity 6.3 qts / 6.0L


Four Stroke 175hp - 300hp

Efficiency without compromise

Take your time on the water to a whole new level. Mercury FourStroke engines deliver unsurpassed power and performance in an efficient, reliable package. Tougher, smaller and lighter than any other four-stroke on the water, built to go the distance on a wide variety of boats and guaranteed to get you the most out of every adventure.

Pro XS® - outrun everything

Run with the engine that keeps setting new standards for performance—and winning. Anglers powered by Pro XS outboards have won more bass fishing tournaments than all other brands combined. With lightning-quick acceleration and top speed, legendary reliability, and lightweight design, it's everything you need to push it farther, faster, and harder.

HP / kW 175 / 130
Engine type V-6
MidSection Conventional MidSection
Displacement (CID/CC) 209 CID
Displacement (L) 3.4L
Cylinder Configuration V-6 [64 degree] with Dual Overhead Cam [DOHC] and 24-valves
Full throttle RPM 5000-5800
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 85-amp (1071 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric Start with SmartStart Protection
Controls Remote Mechanical or Digital Throttle & Shift (DTS)
Steering Big Tiller (optional) Hydraulic (standard) Power (optional)
Shaft length 20" / 508 mm
25" / 635 mm
Gearcase ratio 1.85:1
Dry weight *Lightest model available 475 lbs / 216 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 4.8"
Trim system Power trim and tilt
Exhaust system Through prop
Color Phantom Black
Lubrication system Integrated wet sump
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)
175hp_proxs_v-6_fs_port-rear_3-4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png
HP / kW 175 / 130
Engine type V-6
MidSection Conventional MidSection
Displacement (CID/CC) 209
Displacement (L) 3.4
Cylinder Configuration V-6 [64 degree] with Dual Overhead Cam [DOHC] and 24-valves
Full throttle RPM 5400-6000
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 85-amp (1071 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric Start with SmartStart Protection
Controls Remote Mechanical
Steering Big Tiller (optional)
Hydraulic (standard)
Power (optional)
Shaft length 20" / 508 mm
25" / 635 mm
Gearcase ratio 1.85:1
Dry weight *Lightest model available 470 lbs / 213 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 4.8"
Trim system Power trim and tilt
Exhaust system Through prop
Color Phantom Black
Lubrication system Integrated wet sump
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)
HP / kW 200 / 149
Engine type V-6
MidSection Conventional MidSection
Displacement (CID/CC) 209 CID
Displacement (L) 3.4L
Cylinder Configuration V-6 [64 degree] with Dual Overhead Cam [DOHC] and 24-valves
Full throttle RPM 5000-5800
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 85-amp (1071 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric Start with SmartStart Protection
Controls Remote Mechanical or Digital Throttle & Shift (DTS)
Steering Big Tiller (optional)
Hydraulic (standard)
Power (optional)
Shaft length 20" / 508 mm 25" / 635 mm
Gearcase ratio 1.85:1
Dry weight *Lightest model available 475 lbs / 216 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 4.8"
Trim system Power trim and tilt
Exhaust system Through prop
Counter Rotation Available
Color Cold Fusion White
Pearl Fusion White
Phantom Black
Warm Fusion White
Lubrication system Integrated wet sump
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)
200hp_v8_proxs_fs_port_rear_3-4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png
HP / kW 200 / 149
Engine type V-8
MidSection Conventional MidSection
Displacement (CID/CC) 279 CID
Displacement (L) 4.6L
Cylinder Configuration V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM 5600-6200
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 85-amp (1071 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric Start with SmartStart Protection
Controls Remote Mechanical or Digital Throttle & Shift (DTS)
Steering Big Tiller (optional) Hydraulic (standard) Power (optional)
Shaft length 20" / 508 mm 25" / 635 mm
Gearcase ratio 1.75:1 (TorqueMaster or 5.44"); 1.85:1 (4.8")
Dry weight *Lightest model available 505 lbs / 229 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 20": 4.8"
20": TorqueMaster
25": 5.44"
Trim system Power trim and tilt
Exhaust system Through prop
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)
HP / kW 225 / 168
Engine type V-6
MidSection Conventional MidSection
Displacement (CID/CC) 209 CID
Displacement (L) 3.4L
Cylinder Configuration V-6 [64 degree] with Dual Overhead Cam [DOHC] and 24-valves
Full throttle RPM 5200-6000
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 85-amp (1071 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric Start with SmartStart Protection
Controls Remote Mechanical or Digital Throttle & Shift (DTS)
Steering Big Tiller (optional) Hydraulic (standard) Power (optional)
Shaft length 20" / 508 mm
25" / 635 mm
30" / 762 mm
Gearcase ratio 1.85:1
Dry weight *Lightest model available 475 lbs / 216 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 4.8"
Trim system Power trim and tilt
Exhaust system Through prop
Counter Rotation Available
Color Cold Fusion White
Pearl Fusion White
Phantom Black
Warm Fusion White
Lubrication system Integrated wet sump
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)
225hp_v8_proxs_fs_port_rear_3-4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png
HP / kW 225 / 168
Engine type V-8
MidSection Conventional MidSection
Displacement (CID/CC) 279 CID
Displacement (L) 4.6L
Cylinder Configuration V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM 5600-6200
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 85-amp (1071 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric Start with SmartStart Protection
Controls Remote Mechanical or Digital Throttle & Shift (DTS)
Steering Big Tiller (optional)
Hydraulic (standard)
Power (optional)
Shaft length 20" / 508 mm
25" / 635 mm
Gearcase ratio 1.75:1
Dry weight *Lightest model available 505 lbs / 229 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 20": TorqueMaster
25": 5.44"
Trim system Power trim and tilt
Exhaust system Through prop
Color Phantom Black
Lubrication system Integrated wet sump
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)
HP / kW 250 / 186
Engine type V-8
MidSection Conventional MidSection
Displacement (CID/CC) 279 CID
Displacement (L) 4.6L
Cylinder Configuration V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM 5200-6000
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 85-amp (1071 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric Start with SmartStart Protection
Controls Remote Mechanical or Digital Throttle & Shift (DTS)
Steering Big Tiller (optional)
Hydraulic (standard)
Power (optional)
Shaft length 20" / 508 mm
25" / 635 mm
30" / 762 mm
Gearcase ratio 1.75:1
Dry weight *Lightest model available 527 lbs / 239 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 5.44"
Trim system Power trim and tilt
Exhaust system Through prop
Counter Rotation Available
Color Cold Fusion White Pearl Fusion White Phantom Black Warm Fusion White
Lubrication system Integrated wet sump
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)
250hp_v8_proxs_fs_port_rear_3-4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png
HP / kW 250 / 186
Engine type V-8
MidSection Conventional MidSection
Displacement (CID/CC) 279 CID
Displacement (L) 4.6L
Cylinder Configuration V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM 5600-6200
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 85-amp (1071 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric Start with SmartStart Protection
Controls Remote Mechanical or Digital Throttle & Shift (DTS)
Steering Big Tiller (optional) Hydraulic (standard) Power (optional)
Shaft length 20" / 508 mm
25" / 635 mm
Gearcase ratio 1.75:1
Dry weight *Lightest model available 505 lbs / 229 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 20": TorqueMaster
25": 5.44"
Trim system Power trim and tilt
Exhaust system Through prop
Color Phantom Black
Lubrication system Integrated wet sump
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)
HP / kW 300 / 224
Engine type V-8
MidSection Conventional MidSection
Displacement (CID/CC) 279 CID
Displacement (L) 4.6L
Cylinder Configuration V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM 5200-6000
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 85-amp (1071 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric Start with SmartStart Protection
Controls Remote Mechanical or Digital Throttle & Shift (DTS)
Steering Hydraulic (standard)
Power (optional)
Shaft length 20" / 508 mm
25" / 635 mm
Gearcase ratio 1.75:1
Dry weight *Lightest model available 527 lbs / 239 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 5.44"
Trim system Power trim and tilt
Exhaust system Through prop
Counter Rotation Available
Color Cold Fusion White
Pearl Fusion White
Phantom Black Warm
Fusion White
Lubrication system Integrated wet sump
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)
300hp_v8_proxs_fs_port_rear_3-4.png__510x0_q85_autocrop_crop-scale_subsampling-2_upscale.png
HP / kW 300 / 224
Engine type V-8
MidSection Conventional MidSection
Displacement (CID/CC) 279 CID
Displacement (L) 4.6L
Cylinder Configuration V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM 5600-6200
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 85-amp (1071 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric Start with SmartStart Protection
Controls Remote Mechanical or Digital Throttle & Shift (DTS)
Steering Hydraulic (standard) Power (optional)
Shaft length 20" / 508 mm
25" / 635 mm
Gearcase ratio 1.75:1
Dry weight *Lightest model available 505 lbs / 229 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 20": TorqueMaster 25": 5.44"
Trim system Power trim and tilt
Exhaust system Through prop
Counter Rotation Available
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)

Back to Top



Verado 250hp - 400hp

A Smooth Operator

The smooth, refined power of a V-8 4.6-liter powerhead delivers exhilarating acceleration and top speed to run offshore with confidence, while its generous displacement and robust design provide uncompromising durability and reliability. The Mercury-exclusive Advanced MidSection (AMS) and under-cowl noise management set the standard for smooth, quiet marine propulsion. These exciting new V-8 Verado outboards are wrapped in crisp, bold styling that makes an unmistakable statement on any transom.

verado-250-bk-bk.png__255x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 250 / 186
Engine type V-8
Displacement (CID/CC) 279 CID
Displacement (L) 4.6L
Cylinder Configuration V8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM 5200-6000
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 115-amp (1449 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Starting Electric Start with SmartStart Protection
Controls Standard: Digital Throttle & Shift (DTS)
Steering Integrated Electro-Hydraulic Power-Steering
Shaft length 20" / 508 mm 25" / 635 mm 30" / 762 mm
Gearcase ratio 1.85:1
Dry weight *Lightest model available 600 lbs / 272 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 5.44"
Trim system Power trim and tilt
Exhaust system Through prop
Color Cold Fusion White
Pearl Fusion White
Phantom Black
Warm Fusion White
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)
verado-300-bk-bk.png__255x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 300 / 224
Engine type V-8
Displacement (CID/CC) 279 CID
Displacement (L) 4.6L
Cylinder Configuration V8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM 5200-6000
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 115-amp (1449 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Starting Electric Start with SmartStart Protection
Controls Standard: Digital Throttle & Shift (DTS)
Steering Integrated Electro-Hydraulic Power-Steering
Shaft length 20" / 508 mm 25" / 635 mm 30" / 762 mm
Gearcase ratio 1.75:1 / 1.85:1
Dry weight *Lightest model available 600 lbs / 272 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 5.44"
Trim system Power trim and tilt
Exhaust system Through prop
Color Cold Fusion White
Pearl Fusion White
Phantom Black
Warm Fusion White
Lubrication system Integrated wet sump
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)
 350hp_verado_pblack_3qtr_port-aft.png__255x0_q85_autocrop_crop-scale_subsampling-2_upscale.png
HP / kW 350 / 257
Engine type Inline 6
Displacement (L) 2.6
Full throttle RPM 5800-6400
Air induction Supercharged with charge air cooling and electronic boost pressure control
Fuel induction system Sequential multi-port electronic fuel injection (EFI)
Alternator amp / Watt 70 amp / 882 watt (Belt-Driven)
Recommended fuel Unleaded 95 RON for premium performance (91 RON Minimum)
Recommended oil Mercury FourStroke 25W40 Marine Oil
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Smart Start Electric
Controls SmartCraft Digital
Steering Electro-hydraulic power steering
Shaft length 20" / 508 mm 25" / 635 mm 30" / 762 mm
Gearcase ratio 1.75:1
Dry weight *Lightest model available 668 lbs / 303 kg
CARB star rating 2
Gearcase options 5.44"
Trim system Power trim and tilt with SmartCraft programmable tilt
Counter Rotation Available
Color Cold Fusion White Phantom Black Warm Fusion White
black400-port-angle-tx-copy.png__255x0_q85_autocrop_crop-scale_subsampling-2_upscale.png  HP / kW 400/298
Engine type Inline 6
Displacement (L) 2.6
Full throttle RPM 6400-7000
Air induction Supercharged with charge air cooling and electronic boost pressure control
Fuel induction system Sequential multi-port electronic fuel injection (EFI)
Alternator amp / Watt 70 amp / 882 watt (Belt-Driven)
Recommended fuel Unleaded 95RON minimum
Recommended oil SAE 25W-50 FC-W synthetic blend racing oil
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Smart Start Electric
Controls SmartCraft Digital
Steering Electro-hydraulic power steering
Shaft length 20" / 508 mm 25" / 635 mm 30" / 762 mm
Gearcase ratio 1.75:1
Dry weight *Lightest model available 668 lbs / 303 kg
Emissions Star Rating 3
Gearcase options 5.44"
Trim system Power trim and tilt with SmartCraft programmable tilt
Counter Rotation Available
Color Phantom Black
White

Back to Top
